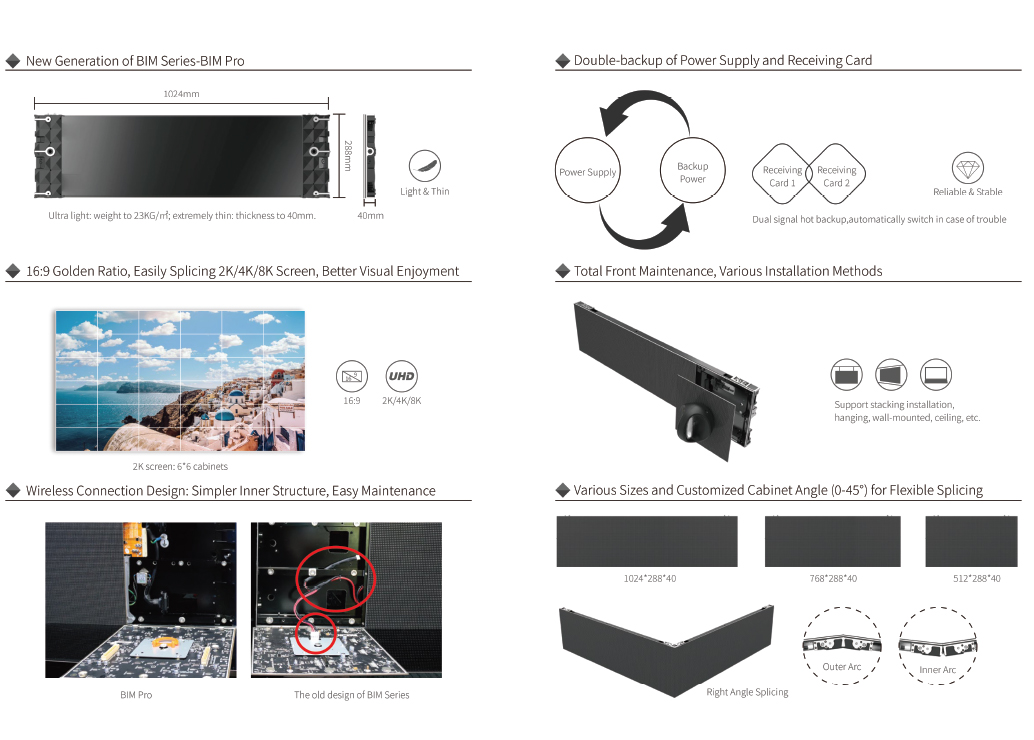

| Model | BIM Pro 1.6 | BIM Pro 2.6 | BIM Pro 4 |
| Pixel Pitch (mm) | 1.6 | 2.6 | 4 |
| Physical Density (dot/m2) | 390625 | 140625 | 62500 |
| LED Type | SMD1010 | SMD2121 | SMD2121 |
| Module Size (mm*mm) | 256*288 | 256*288 | 256*288 |
| Module Resolution (px*px) | 160*180 | 96*108 | 64*72 |
| Viewing Angle (Deg) | 140°H/150°V | 140°H/150°V | 140°H/150°V |
| Brightness (nits) | 800 | 1000 | 800 |
| Gray Scale (bit) | 16 | 16 | 16 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 |
| Max. Power Consumption (W/m2) | 640 | 640 | 640 |
| Average Power Consumption (W/m2) | 256 | 256 | 256 |
| Cabinet Size(mm*mm*mm) | 1024*288*40/768*288*40/512*288*40 | ||
| Cabinet Weight (±0.25Kg) | 7/6/5 | ||
| Input Voltage (AC) | 100-240V | 100-240V | 100-240V |
| Ingress Protection | IP20 | IP20 | IP20 |
| Working Environment | Indoor | Indoor | Indoor |
| Certificates | ETL/FCC/CE/EMC | ETL/FCC/CE/EMC | ETL/FCC/CE/EMC |
