• Adopt aluminum alloy box corrosion resistance leading industry
standard, structure CNC carving process is lighter and thinner;
• Display 17.3-inch high-definition LCD screen, the best resolution state:
1920*1080, the back frame is made of pure metal aluminum alloy, the
thickness is about 7mm, and the surface treatment is anode drawing

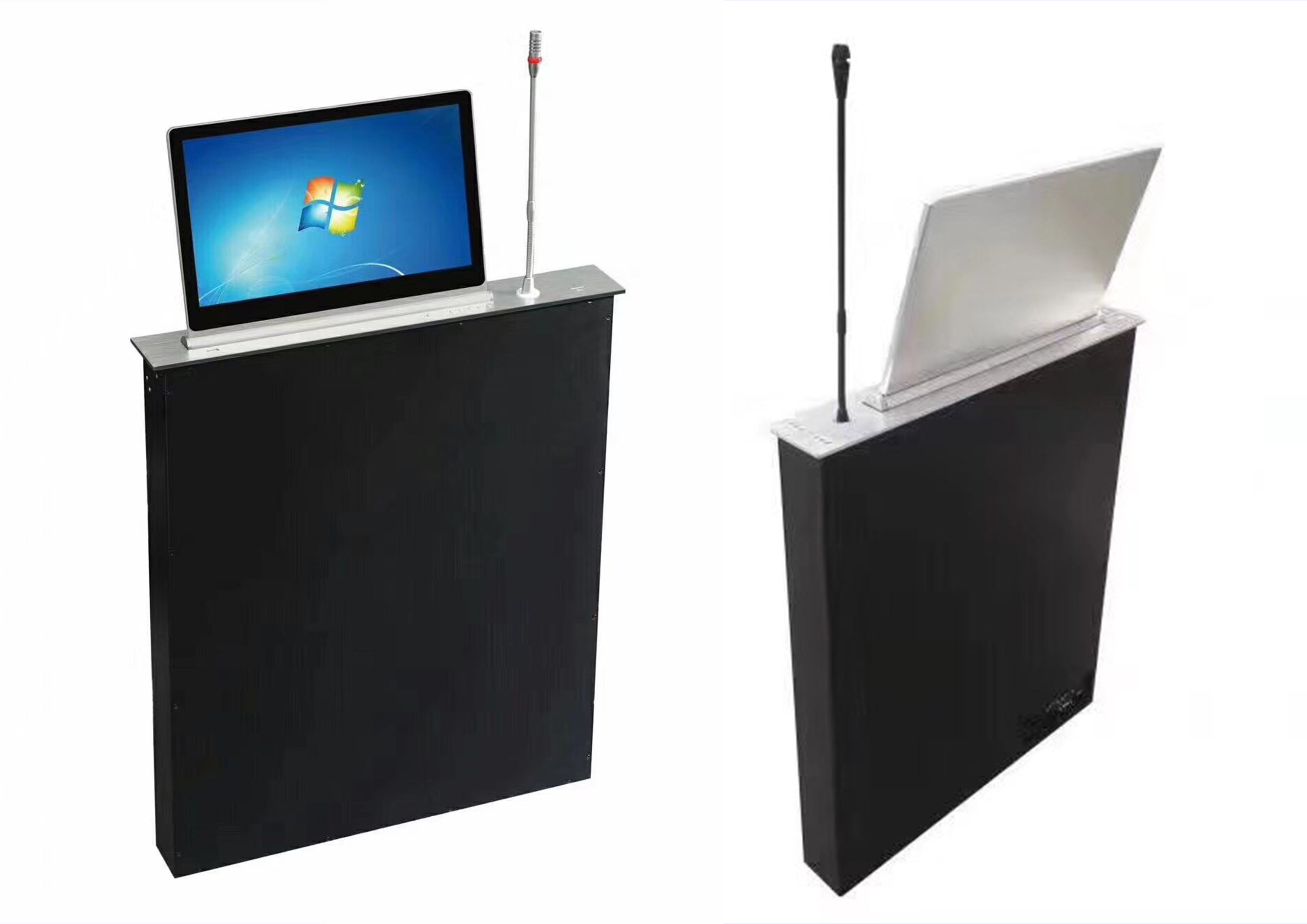

• The dual-motor drive (lift and elevation) of the display screen defaults
to 15°, which can be customized to 30°. ;
• The transmission structure is a guide rail pulley, the structure is stable
and the noise is small;
• A reasonable tank chain wiring structure is used internally, and the
machine will not show broken line jamming when it goes up and down;
• The panel keys are made of metal, with fine appearance and excellent
texture, and long-term use will not reduce the key sensitivity;
• The panel is uniformly equipped with metal computer host buttons and
USB data interface to enrich product functions;
• In addition to the screen and electronic components, the panel chassis
and internal metal parts are made of aluminum alloy, which has strong
corrosion resistance.
• Rich interface, panel: USB*1, start button*1; video input: VGA, HDMI;
data transmission: USB*1, RS485 control interface: RJ45*4
• Dual motor drive (lift and elevation) defaults to 15°
• Product color: silver;
• Signal input:
(1) Support HDMI and VGA signal input;
(2) When there is only one signal, the screen automatically recognizes
the signal;
(3) When two signals are input at the same time, the signal can be
manually switched through the panel;
(4) When there is no signal, the screen automatically enters the power
saving mode;
• Control method:
(1) Manual panel control;
(2) RS232 and RS485 control of the central control system;
• Working temperature: 0~45°C;
• Relative humidity: no more than 80% (20±5°C);
• Power requirements: voltage: AC220V, frequency 50/60HZ.
