| Pixel Pitxh (mm) | 3.91 | 4.81 | 3.91 | 4.81 | 3.91 | 4.81 |
| Model | Malibu 500*500 | Malibu 500*500 | Malibu 500*750 | Malibu 500*750 | Malibu 500*1000 | Malibu 500*1000 |
| Physical Density (dot/m2) | 65536 | 43264 | 65536 | 43264 | 65536 | 43264 |
| LED type | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
| Module Size (mm*mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |

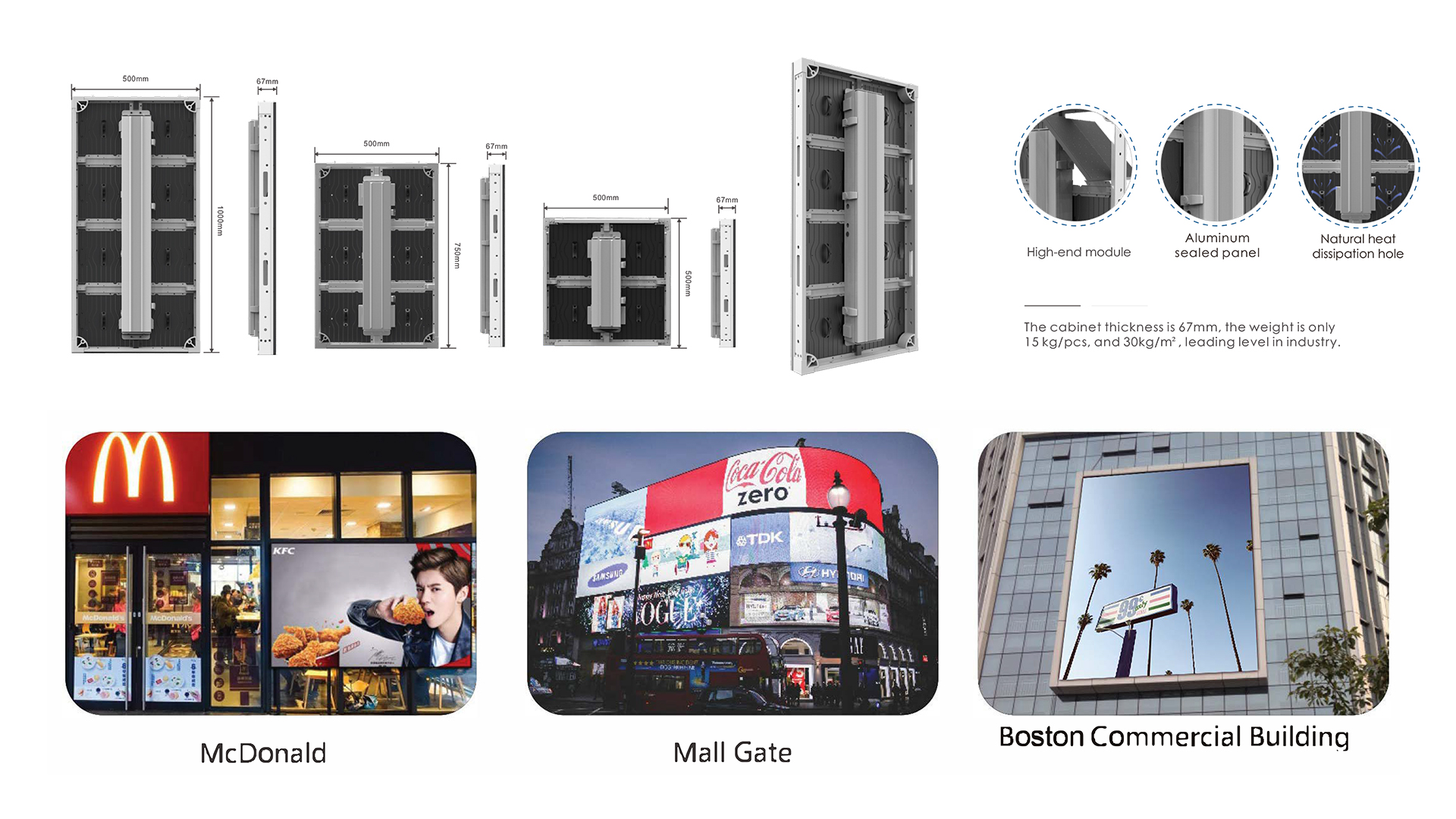

| Cabinet Size (mm*mm) | 500*500*67 | 500*500*67 | 500*750*67 | 500*750*67 | 500*1000*67 | 500*1000*67 |
| Cabinet Weight(Kg/pcs) | 7.8 | 7.8 | 10.7 | 10.7 | 15 | 15 |
| Cabinet Resolution | 128*128 | 104*104 | 128*192 | 104*156 | 128*256 | 104*208 |
| Module Resolution | 64*64 | 52*52 | 64*64 | 52*52 | 64*64 | 52*52 |
| Veiwing Angle (Deg) | 160/120 | 160/120 | 160/120 | 160/120 | 160/120 | 160/120 |
| Brightness (CD/m2) | 4500 | 5000 | 4500 | 5000 | 4500 | 5000 |
| Gray Scale (Bit) | 16 | 16 | 16 | 16 | 16 | 16 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 |
| Max. Cabinet Power Consumption (W) | 152 | 160 | 228 | 240 | 304 | 320 |
| Average Cabinet Power Consumption (W) | 60 | 64 | 92 | 96 | 121 | 128 |
| Input Voltage (V) | 110-240V | 110-240V | 110-240V | 110-240V | 110-240V | 110-240V |
| Working Temperature Range (°C) | -20~ +60 | -20~ +60 | -20~ +60 | -20~ +60 | -20~ +60 | -20~ +60 |
| Working Humidity Range(RH) | 10%~85% | 10%~85% | 10%~85% | 10%~85% | 10%~85% | 10%~85% |
| Ingress Protection* | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Lifespan (H) | >=50000 | >=50000 | >=50000 | >=50000 | >=50000 | >=50000 |
| Certificates | CE.FCC.EMC | CE.FCC.EMC | CE.FCC.EMC | CE.FCC.EMC | CE.FCC.EMC | CE.FCC.EMC |
| * Ingress Protection (Option) Front IP66 | ||||||
